Board Lifter 100

Tilt swivel
Ergonomic lifting height
Lockable castors
Adjustable chassi

Important support for your plasterboard handling

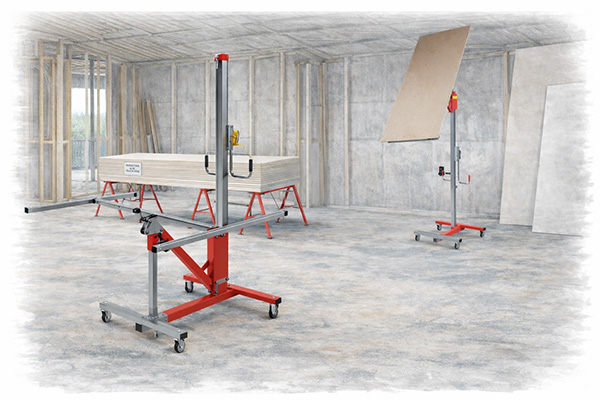

Our Board Lifter 100 is designed to provide support when installing plasterboard so you can minimise risk to you and your workers of stress injuries or other accidents. The Board Lift holds sheets up for you during installation, so that you can have peace and quiet to focus on installation, instead of heavy lifting.

The Board Lifter allows you to perform both inner, sloped and high wall installation. Its stable steel and plate tube construction with galvanised profiles can be easily disassembled to take up minimum space – for example during transport or storage.

Scope of use
The Board Lifter works in perfect symbiosis with the other tools in our effective system for plasterboard logistics. Its smart design is evident, with the sheet yoke’s lowest level flush with both the Plasterboard Trestles and Transit Bench to easily move plasterboard between different tasks – in a safe and ergonomic way. Simply flip each sheet over to the yoke and then lift it up to the desired height.

With our Board Lift you avoid risky and complicated tasks with plasterboard installation at higher levels. It is part of the effort to create a more intelligent flow with good ergonomics and high efficiency in our entire operating range.

Technical specification
Articel number: 23000
Max load: 100 kg
Width: 810 mm
Length: 810 mm
Height: 2040 mm
Weight: 54 kg
SRA-code: 756325
Lifting height, lower position: 850-3350 mm
Lift height, top position: 1250-3750 mm
